[Asia pump network] metering pump, also known as quantitative pump or proportional pump. Metering pump is a special volume pump that can meet a variety of strict process requirements, highly respected. However, in the process of using, it often lends some metrological problems and faults. Xiaobian organize some common faults and suggestions here. Metering pump 1) Metering pump does not spin properly to 100% stroke length. This will rotate the entire assembly to the backplane drain vent and align with the bottom of the pump. Adjust hydraulic end and diaphragm to proper position during pump operation. The pulse duration may not be long enough for the reaction time. The flow monitor pulse width extension can be activated, increasing the pulse width by 300 msec relative to the standard pulse width of 80 msec. Activate the smart change-over switch, remove the cover of the fixed circuit board and remove jumper X-1. This activates the extended function, allowing more time before the fault indication. Dosing pump is installed from the exhaust pump head, using self-filling liquid suction. Keep the pipette as short as possible. 2) Dismounting the dosing pump diaphragm When removing the old diaphragm, it is often troublesome. Now provide some additional tips on how to remove the old diaphragm. 1. After the pump head is loose, adjust the stroke length to 0% before removing the pump head. You can ensure that the solenoid shaft has enough pressure to keep it firmly connected, so that you can unscrew the diaphragm. Pull the hydraulic end outward to disengage the screw from the socket. Hold the liquid side counterclockwise. Slightly more resistance, you can spin the diaphragm. 3. The metered chemical may crystallize on the hydraulic side, causing the check valve ball and seat to not work properly. 4. There may be a gas leak at the suction side of the metering pump. Fluid side suction side connections may lack o-rings or suction valve connections loose. 3) Metering a high-viscosity medium with flow monitoring and receiving a flow fault indication signal during the priming process. What to do to solve this problem? By loosening the 4 pump head screws, move the hydraulic end. Rotate the stroke length to 0% and grasp the hydraulic end, then slide out of the screw hole, then the screw does not come into contact with them, but also hold the back plate and the diaphragm. Then rotate this part anticlockwise, with a slight resistance, and the diaphragm will loosen from the solenoid shaft. If the diaphragm has not loosened, use some lubricant on the contact surfaces of the diaphragm and the electromagnet. After a few minutes, gently tap the diaphragm with a plastic hammer. Then proceed again as described above. 4) How to prevent the metering pump stroke positioning motor burned? 1. Remove the four screws fixing the pump head. The screw is located on the back of the metering pump. 2. See if a drain tube is installed and drain valve closed? The drain valve needs to be opened during the dosing phase of the metering pump. Note: Not all dosing pumps have drain valves. 3. Install the pump head after the septum is installed and the backplane drain vent is in the upright position. Make sure the suction valve is aligned with the leak drain hole and the hydraulic end screw is aligned with the corresponding 4 holes. 5) hydraulic metering pump flow smaller or inaccurate? 1. Unscrew the bleed valve in the three valves. 2. Full charge by filling valve. This article is copyrighted industry interconnect (Xiamen) Co., Ltd. All are welcome to reprint, please indicate the author and source Author: Asian pumps Network (CEO QQ / micro letter: 18,189,528) Editor: Zeng Fenfen (QQ / micro letter:) starting: http : //beng.liuti.cn/ (Service Hotline:)
3D LED Bulb
3D LED Bulb is widely used in dj lighitng, disco lighting, club lighting, resturant lighting, theme resturant lighting and park decoration lighting. We call the rgb led bulb in different name for different led lighting application, like dj ball, ball 3d, disco ball light bulb, club led bulb, etc
The 3D LED Bulb can be for indoor and outdoor. We cooperate with other famous design organizations to make a big improvement on LED 3D control technology, and developed many 3D visual products, like the ball string(40mm 3D LED Ball string, 50mm 3D led ball string), and the big Magic LED Ball with different size,. The 3D balls control mainly by DMX 512 protocol, and easy to built the led lighting system.
Suppor DMX512 control, address can be manually and automatically set, long transmitting distance of signal and strong anti-interference.
3D LED Bulb Built-in high precision constant current driver IC, LED luminous efficiency is good and uniform color.
Apply superior quality high brightness SMD5050 led, red, green, blue, white and other colors can be chosen.
Apply more efficient DC to DC power supply manage disign, energy saving can reach 40%.
Adopt environmentally friendly materials, no glare, no noisy. Solid capacitor design, lifespan is longer.
Potting glue craft, waterproof level is superior, and can reach IP65.

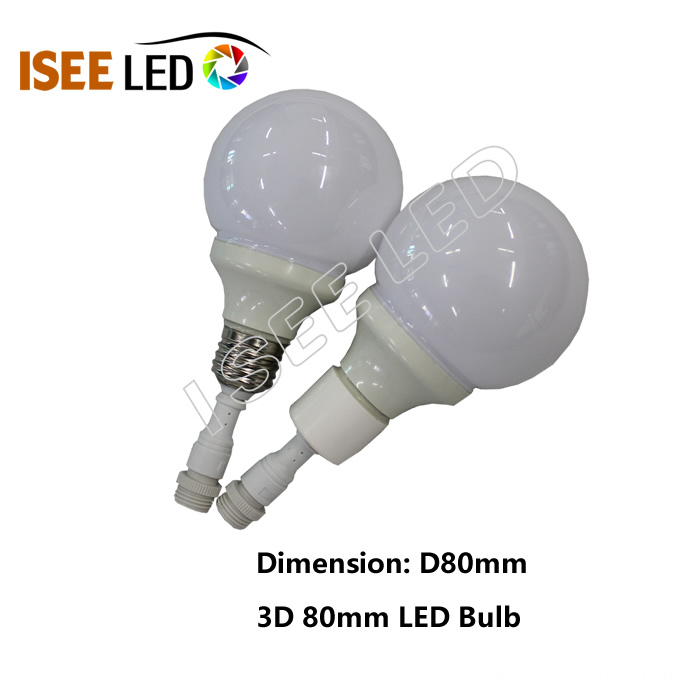

Photo show of 3D LED Bulb:
3D Led Bulb,Disco Ball Light Bulb,3D Light Led Bulb,3D Led Filament Bulb
